Flange series

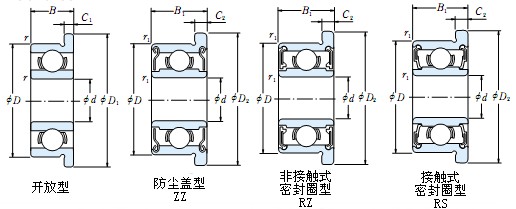

Main dimensions(mm)										The rated load		Limit speed		Bearing type
Main dimensions(mm)										The rated load		*1000rpm		Bearing type
d	D	D1	D2	B	B1	C1	C2	r(min)	r1(min)	Cr(N)	Cor(N)	Grease	Oil	Open	Shield	Seal
3	6	7.2		2	2.5	0.6	0.6	0.08		206	73	71	80	MF63	MF63ZZ	-	-
	7	8.1		2	3	0.5	0.8	0.1		384	129	63	75	F683	F683ZZ	-	-
	8	9.2		2.5	-	0.6	-	0.15		395	141	60	67	MF83	-	-	-
	8	9.5		3	4	0.7	0.9	0.15		553	176	60	67	F693	F693ZZ	-	-
	9	10.2 *		2.5	4	0.6	0.8	0.15		634	219	56	67	MF93	MF93ZZ	-	-
	9	10.5		3	5	0.7	1	0.15		634	219	56	67	F603	F603ZZ	-	-
	10	11.5		4	4	1	1	0.15		641	226	50	60	F623	F623ZZ	2RZ	2RS
	13	-		5	5	-	-	0.2		1306	187	40	48	-	-	2RZ	2RS
4	7	8.2		2	-	0.6	-	0.08		311	115	60	67	MF74	-	-	-
	7	8.2		-	2.5	-	0.6	0.08		252	106	60	67	-	MF74ZZ	-	-
	8	9.2		2	3	0.6	1	0.1		391	140	56	67	MF84	MF84ZZ	-	-
	9	10.3		2.5	4	0.6	0.8	0.1		641	226	53	63	F684	F684ZZ	2RZ	2RS
	10	11.2		3	4	0.6	1	0.15		708	266	48	56	MF104	MF104ZZ	2RZ	2RS
	11	12.5		4	4	1	1	0.15		959	347	48	56	F694	F694ZZ	2RZ	2RS
	12	13.5		4	4	1	1	0.2		959	347	48	56	F604	F604ZZ	2RZ	2RS
	13	15		5	5	1	1	0.2		1306	487	40	48	F624	F624ZZ	2RZ	2RS
	16	18		5	5	1	1	0.3		1735	671	36	43	F634	F634ZZ	2RZ	2RS
5	8	9.2		2	-	0.1	-	0.08		308	120	53	63	MF85	-	-	-
	8	9.2		-	2.5	-	0.6	0.08		218	90	53	63	-	MF85ZZ	-	-
	9	10.2		2.5	3	0.6	0.6	0.1		495	207	50	60	MF95	MF95ZZ	-	-
	10	11.2		3	4	0.6	0.8	0.1		714	276	50	60	MF105	MF105ZZ	2RZ	2RS
	11	12.6		-	4	-	0.8	0.15		714	276	45	53	-	MF115ZZ	2RZ	2RS
	11	12.5		3	5	0.8	1	0.15		714	276	45	53	F685	F685ZZ	2RZ	2RS
	13	15		4	4	1	1	0.2		1074	422	43	50	F695	F695ZZ	2RZ	2RS
	14	16		5	5	1	1	0.2		1329	508	40	50	F605	F605ZZ	2RZ	2RS
	16	18		5	5	1	1	0.3		1735	671	36	43	F625	F625ZZ	2RZ	2RS
	19	22		6	6	1.5	1.5	0.3		2336	896	32	40	F635	F635ZZ	2RZ	2RS
6	10	11.2		2.5	3	0.6	0.6	0.1		457	194	45	53	MF106	MF106ZZ	-	-
	12	13.2		3	4	0.6	0.8	0.15		831	363	43	50	MF126	MF126ZZ	2RZ	2RS
	13	15		3.5	5	1	1.1	0.15		1083	438	40	50	F686	F686ZZ	2RZ	2RS
	15	17		5	5	1.2	1.2	0.2		1470	599	40	45	F696	F696ZZ	2RZ	2RS
	17	19		6	6	1.2	1.2	0.3		2265	839	38	45	F606	F606ZZ	2RZ	2RS
	19	22		6	6	1.5	1.5	0.3		2240	912	32	40	F626	F626ZZ	2RZ	2RS
	22	-		7	7	-	-	0.3		3297	1368	30	36	-	-	2RZ	2RS
7	11	12.2		2.5	3	0.6	0.6	0.1		449	199	43	50	MF117	MF117ZZ	-	-
	13	14.2		3	4	0.6	0.8	0.15		880	414	40	48	MF137	MF137ZZ	-	-
	14	16		3.5	5	1	1.1	0.15		1175	511	40	50	F687	F687ZZ	2RZ	2RS
	17	19		5	5	1.2	1.2	0.3		1606	712	36	43	F697	F697ZZ	2RZ	2RS
	19	22		6	6	1.5	1.5	0.3		2240	912	36	43	F607	F607ZZ	2RZ	2RS
	22	25		7	7	1.5	1.5	0.3		3297	1368	30	36	F627	F627ZZ	2RZ	2RS
	26	-		9	9	-	-	0.3		4578	1970	28	34	-	-	2RZ	2RS
8	12	13.2		2.5	3.5	0.6	0.8	0.1		506	249	40	48	MF128	MF128ZZ	-	-
	14	15.6		3.5	4	0.8	0.8	0.15		819	386	38	45	MF148	MF148ZZ	2RZ	2RS
	16	18		4	5	1	1.1	0.2		1606	712	36	43	F688	F688ZZ	2RZ	2RS
	19	22		6	6	1.5	1.5	0.3		2240	912	36	43	F698	F698ZZ	2RZ	2RS
	22	25		7	7	1.5	1.5	0.3		3297	1368	34	40	F608	F608ZZ	2RZ	2RS
	24	-		8	8	-	-	0.3		3297	1368	28	34	-	-	2RZ	2RS
	28	-		9	9	-	-	0.3		4578	1970	28	34	-	-	2RZ	2RS
9	14	15.5		3	4.5	0.6	0.8	0.1		919	468	36	42	F679	F679ZZ	-	-
	17	19		4	5	1	1.1	0.2		1724	813	36	43	F689	F689ZZ	2RZ	2RS
	20	23		6	6	1.5	1.5	0.3		1606	712	34	40	F699	F699ZZ	2RZ	2RS
	24	27		7	7	1.5	1.5	0.3		3297	1368	32	38	F609	F609ZZ	2RZ	2RS
	26	-		8	8	-	-	0.3		4578	1970	28	34	-	-	2RZ	2RS
	30			10	10	-	-	0.6		4578	1970	24	30	-	-	2RZ	2RS
10	15	16.5	16.5	3	4	0.8	0.8	0.2		850	430	14	16	F6700	F6700zz	-	-
	19	21		5	5	1	1	0.3		1700	800	35	42	F6800	F6800zz	-	-
	22	25		6	6	1.5	1.5	0.3		2611	1223	31	40	F6900	F6900zz	-	-
	26	28		-	8	-	2	0.3		4550	1960	20	28	F6000	F6000zz	-	-
	30	32.25		-	9	-	2.25	0.6		5000	2300	20	26	F6200	F6200zz	-	-
	35	37.75		-	11	-	2.75	0.6		5000	2300	20	-	F6300	F6300zz	-	-
12	18	19.5	19.5	4	4	0.8	0.8	0.3		922	512	12	14	F6701	F6701zz	-	-
	21	23		5	5	0.8	1	0.3		1911	1041	33	39	F6801	F6801zz	-	-
	24	26.5		6	6	1	1.5	0.3		2831	1411	31	36	F6901	F6901zz	-	-
	28	30		-	8	-	2	0.3		5000	2300	19	26	F6001	F6001zz	-	-
	32	34.25		-	9	2.5	0.6	0.6		6100	3.05	18	24	F6201	F6201zz	-	-
	37	40		-	12	-	3	1		9720	5080	17	22	F6301	F6301zz	-	-
15	24	26		-	5	-	1.1	0.3		1900	1000	22	30	F6802	F6802zz	-	-
	32	34.25		-	9	-	2.25	0.3		5500	2840	18	24	F6002	F6002zz	-	-
	35	37.75		-	11	-	2.75	0.6		7650	3700	17	22	F6202	F6202zz	-	-
	42	45		-	13	-	3	1		11500	5420	16	20	F6302	F6302zz	-	-
